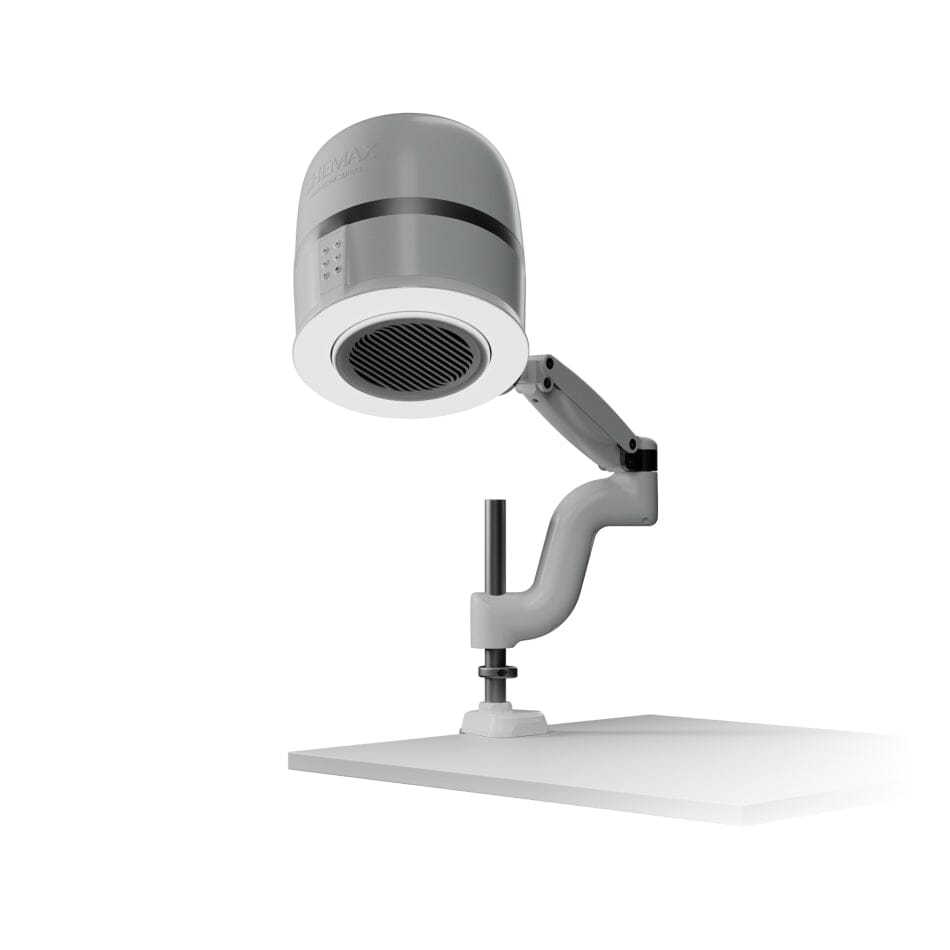

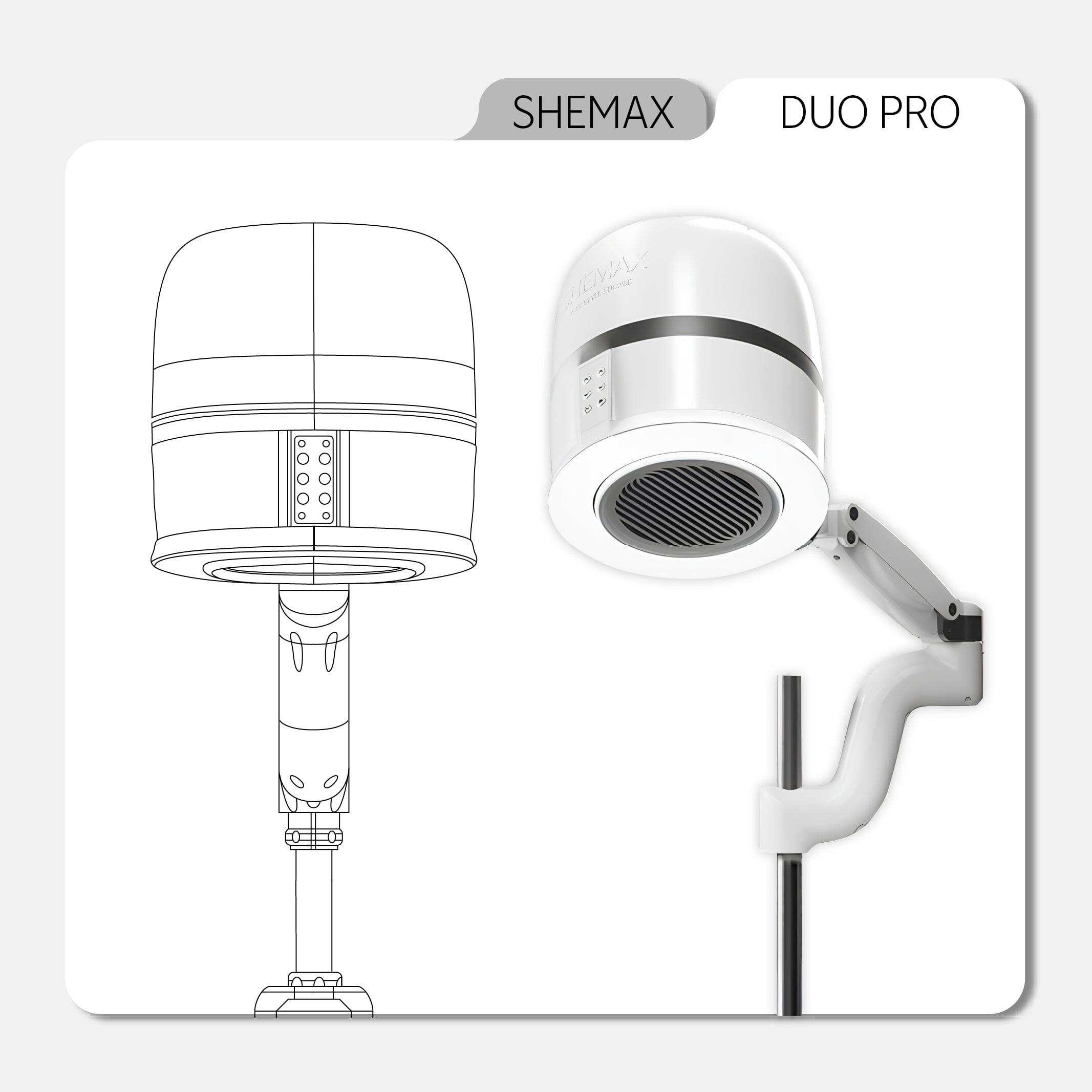

Shemax Duo Pro White pedicure nail dust collector

Included in the Box:

• DUO PRO Unit — 1 pc
• Clamp Mount with Locking Ring — 1 pc
• Replaceable Filter — 1 pc
• Cleaning Brush — 1 pc
• Hex Keys — 3 pcs
• User Manual — 1 pc
• Power Adapter — 1 pc

⚠️ Please check the contents upon unboxing. The manufacturer reserves the right to update product appearance or accessories without prior notice.

Device Installation

1. Take the clamp and a hex key.
2. Unscrew the bolts holding the two parts of the clamp together.
3. Adjust the clamp to fit the table thickness.
4. Tighten the bolts to secure the clamp.
5. Tighten the star knob clockwise.
IMPORTANT: Make sure the clamp is securely attached to your workspace.

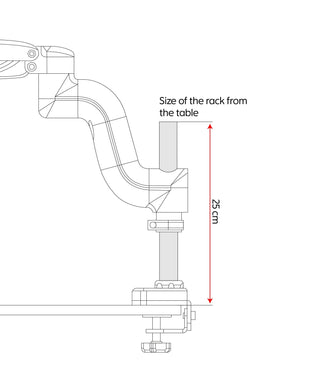

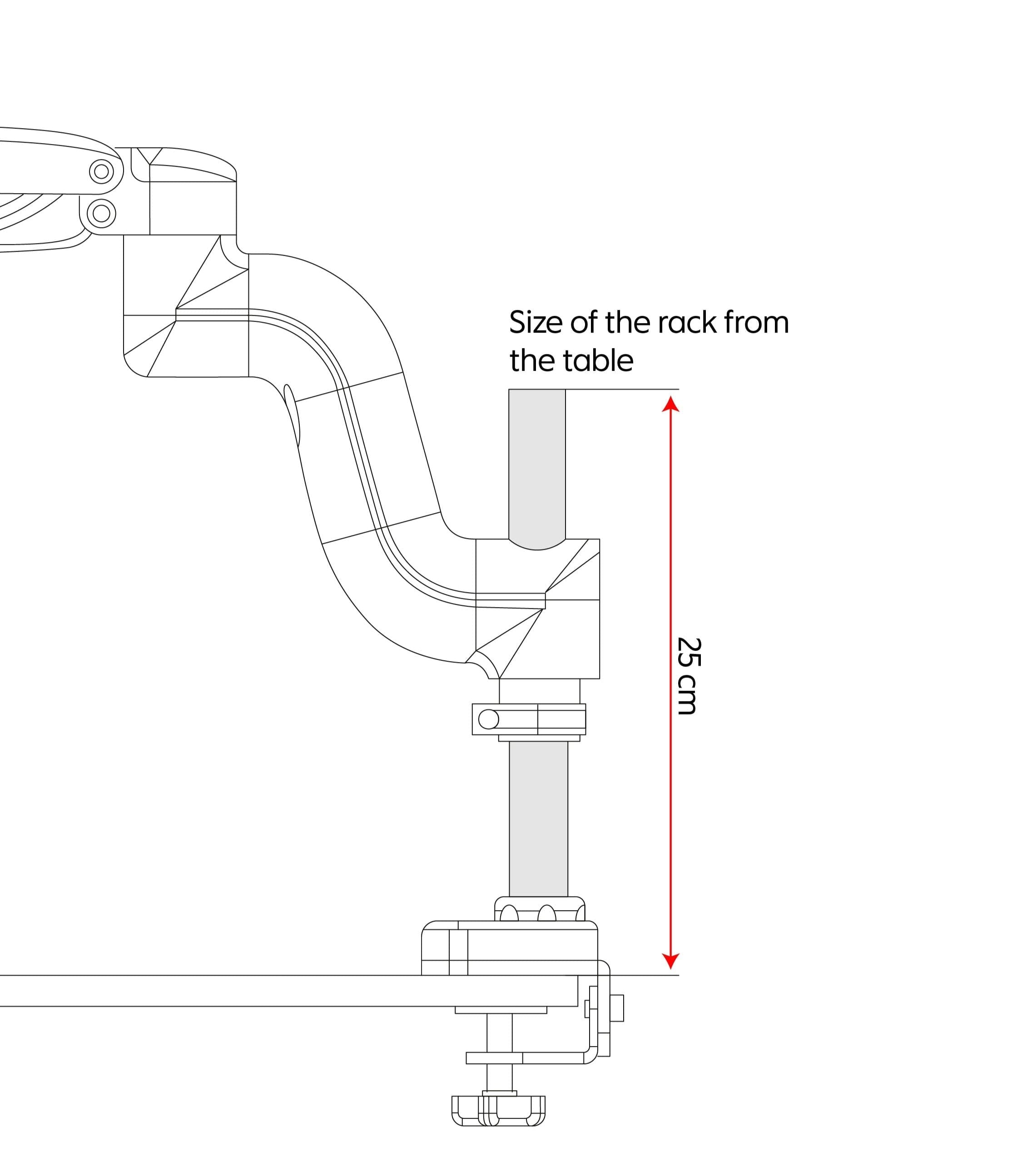

6. Use the hex key to loosen the locking ring on the vertical rod.
7. Set the ring to the desired height and tighten it.
8. Remove the upper part of the device from the box.
9. Mount the device onto the clamp’s vertical rod. If the ring slips due to the weight, tighten the adjustment bolt with the hex key.

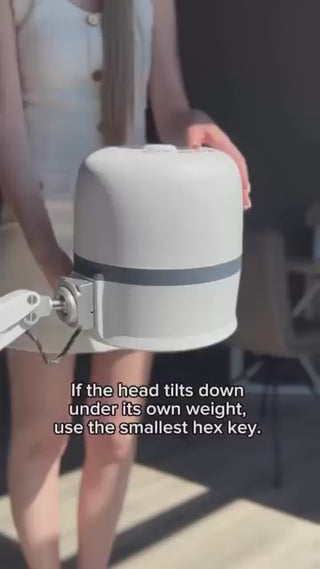

IMPORTANT: If the head tilts during use, gently tighten the mount bolt with the hex key for a secure fit.

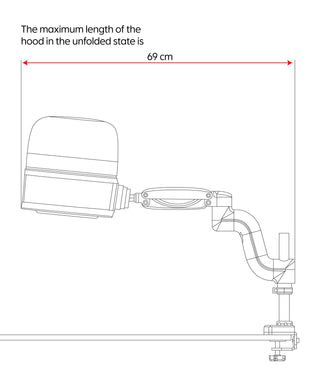

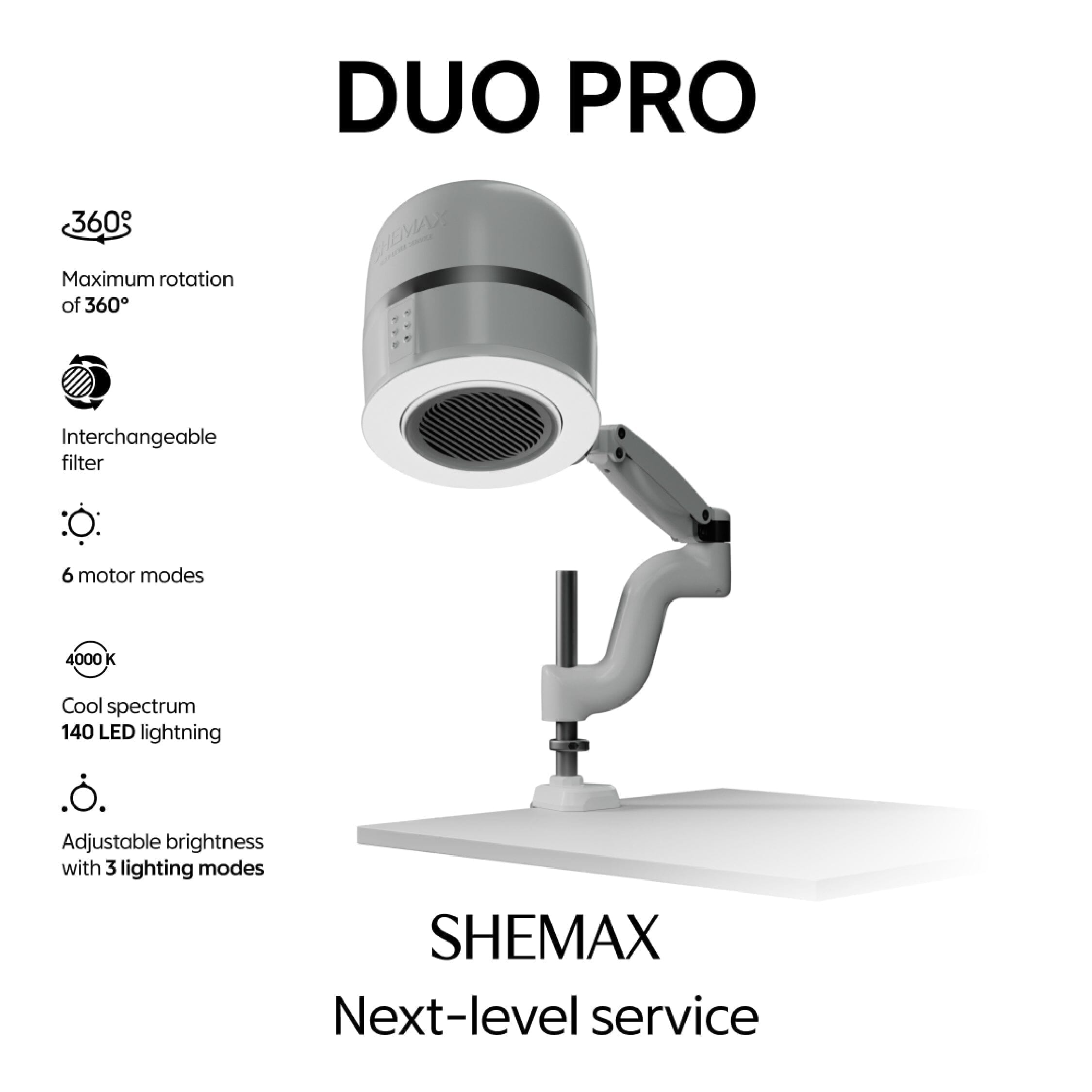

10. Adjust and lock the device in the preferred working position:

• 360° rotation with height adjustment for optimal ergonomics
• 180° side swing

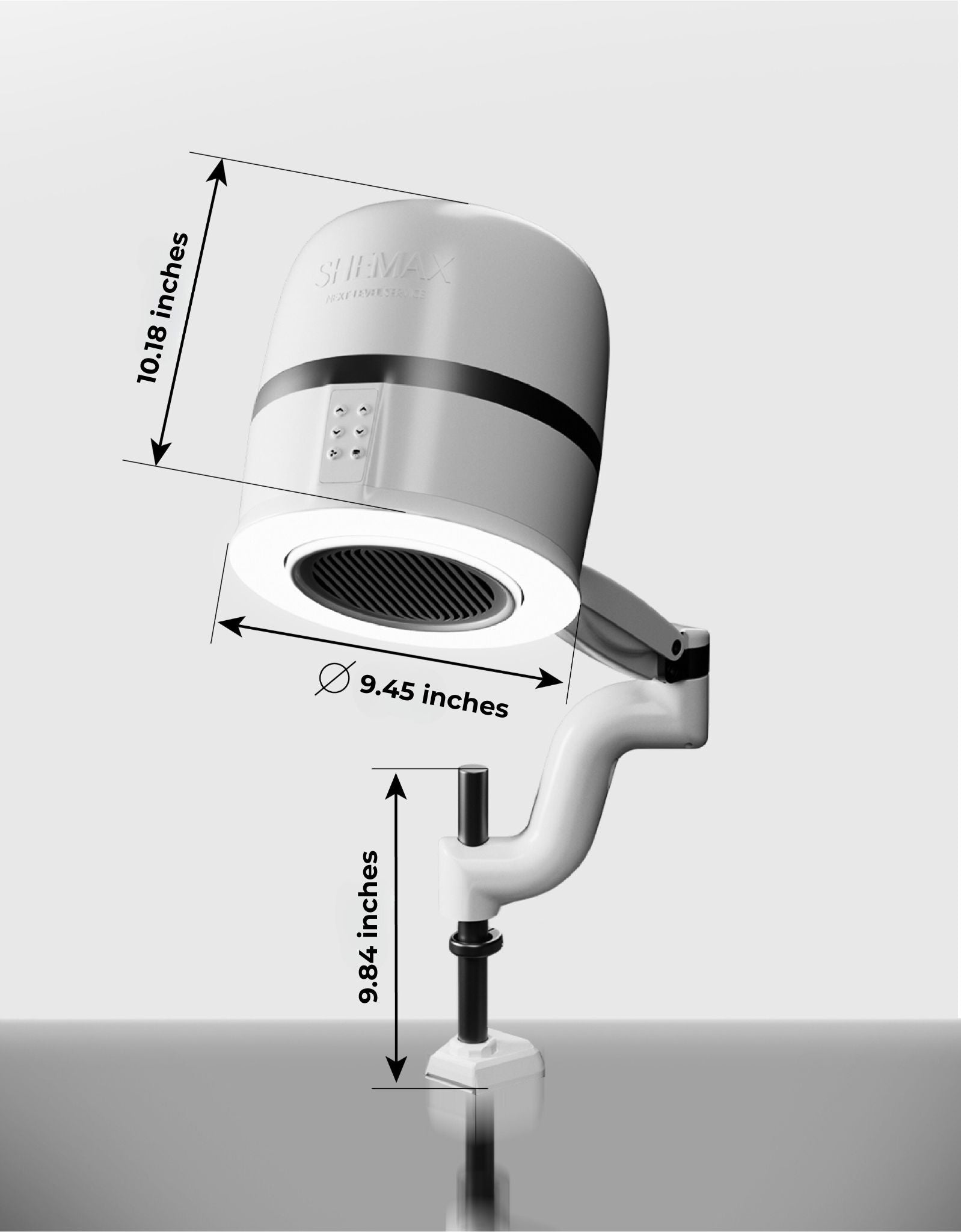

• 220mm vertical range
• The head tilts 15° in any direction and rotates 180° on its axis

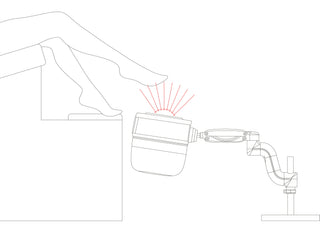

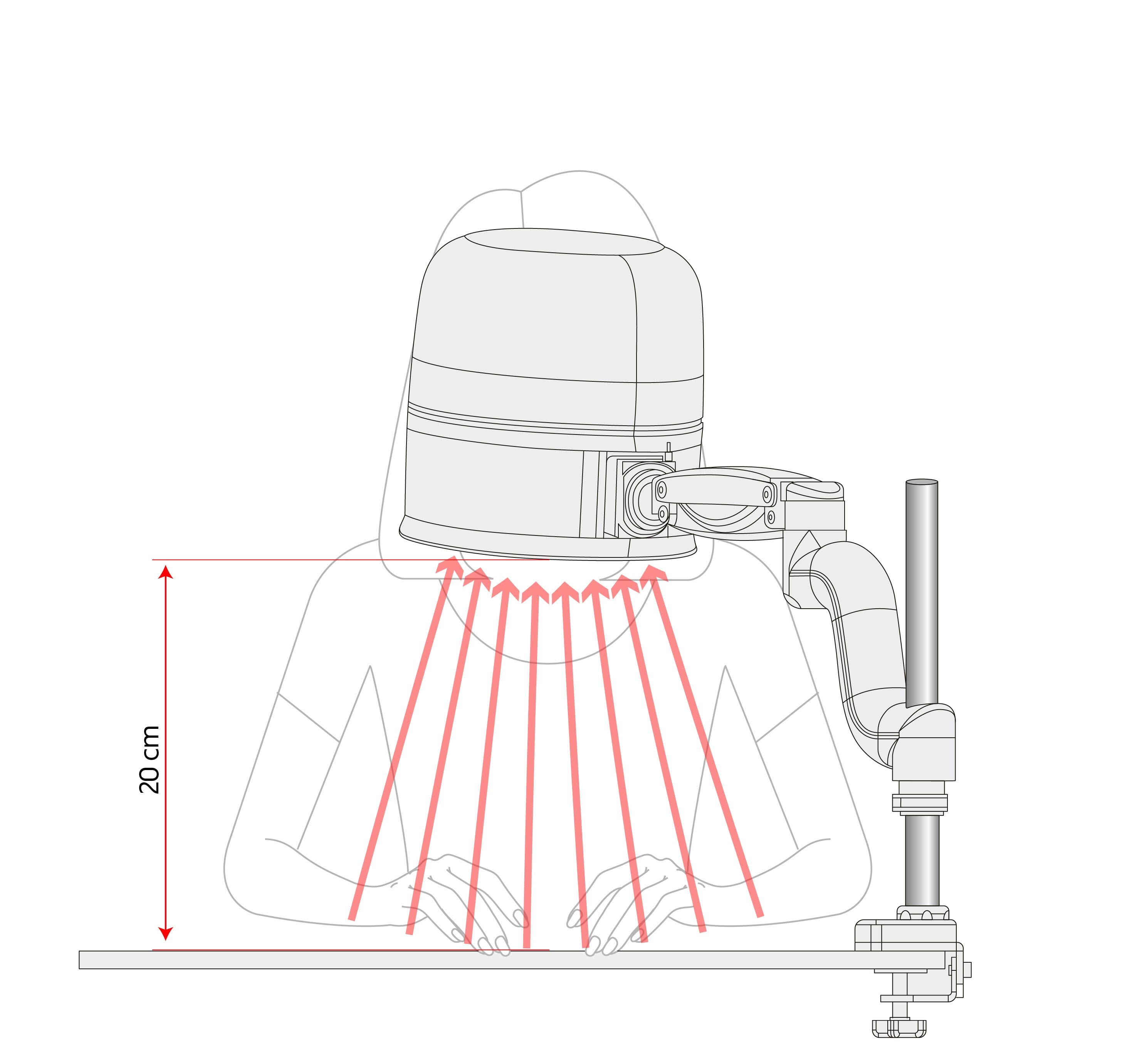

✅ Position the dust collector 4–6 inches (10–15 cm) above your workspace at a 45° angle.

To increase resistance in the rotating mechanism and reduce wear over time, use a 2.5mm hex key to tighten the three bolts on the rotating joint one quarter-turn at a time. Repeat if necessary.
11. Connect the power adapter (plug, cable, and unit cable).
12. Ensure the cable is undamaged.
⚠️ Do not operate without the filter installed and the casing closed.

Your DUO PRO is now ready to use!

Getting Started

1. Wear a mask and gloves.
⚠️ Long hair must be tied back or covered to prevent it from being pulled into the fan.
2. Plug the device into an outlet and press the Power button.
🕒 The unit starts 6 seconds after pressing due to its soft-start feature.

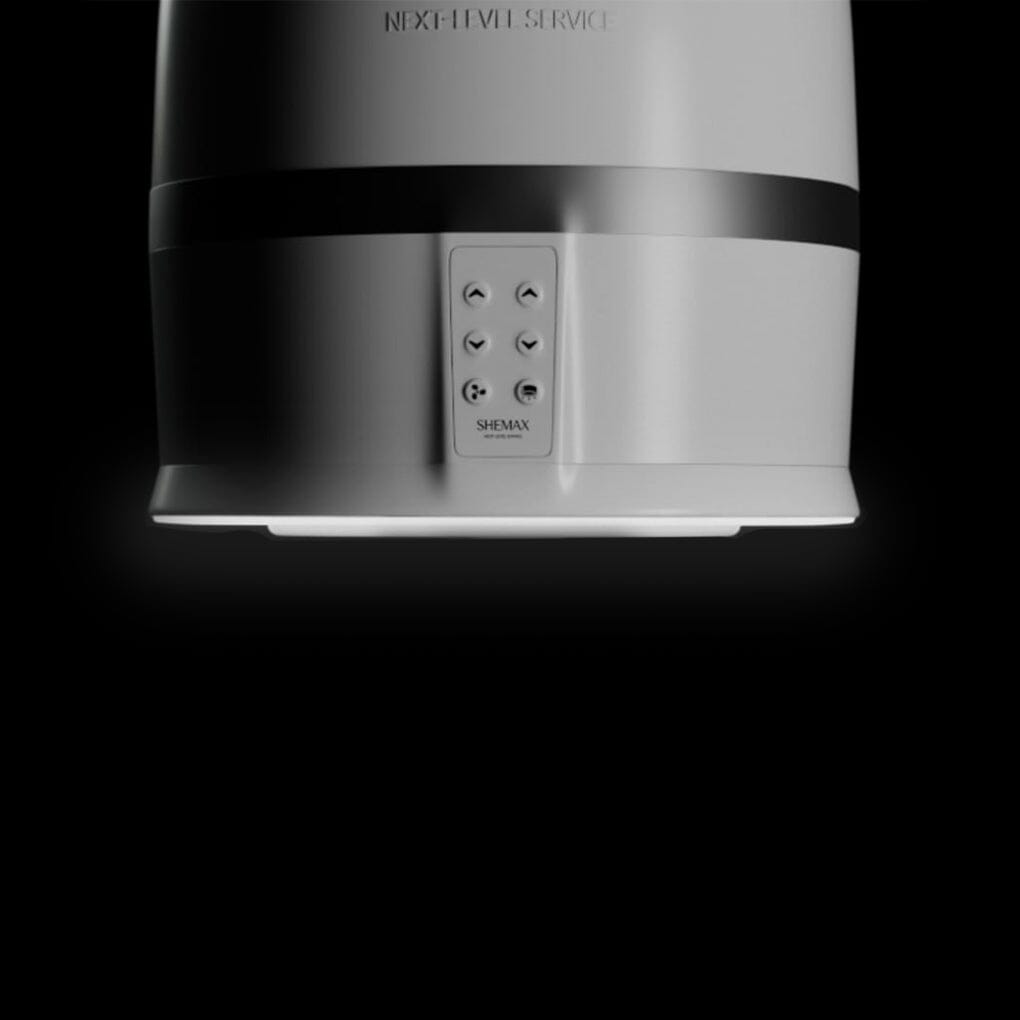

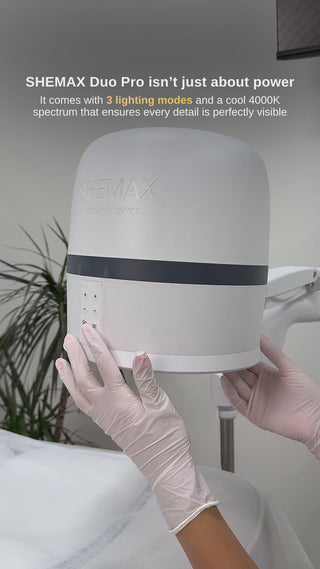

3. Adjust the light using the "+" or "–" buttons to choose from 3 brightness modes.
4. Choose one of 6 suction power levels:

• Modes 1–2: For gel polish and materials that emit vapors — ultra-quiet mode
• Mode 3: For light materials, moderate suction

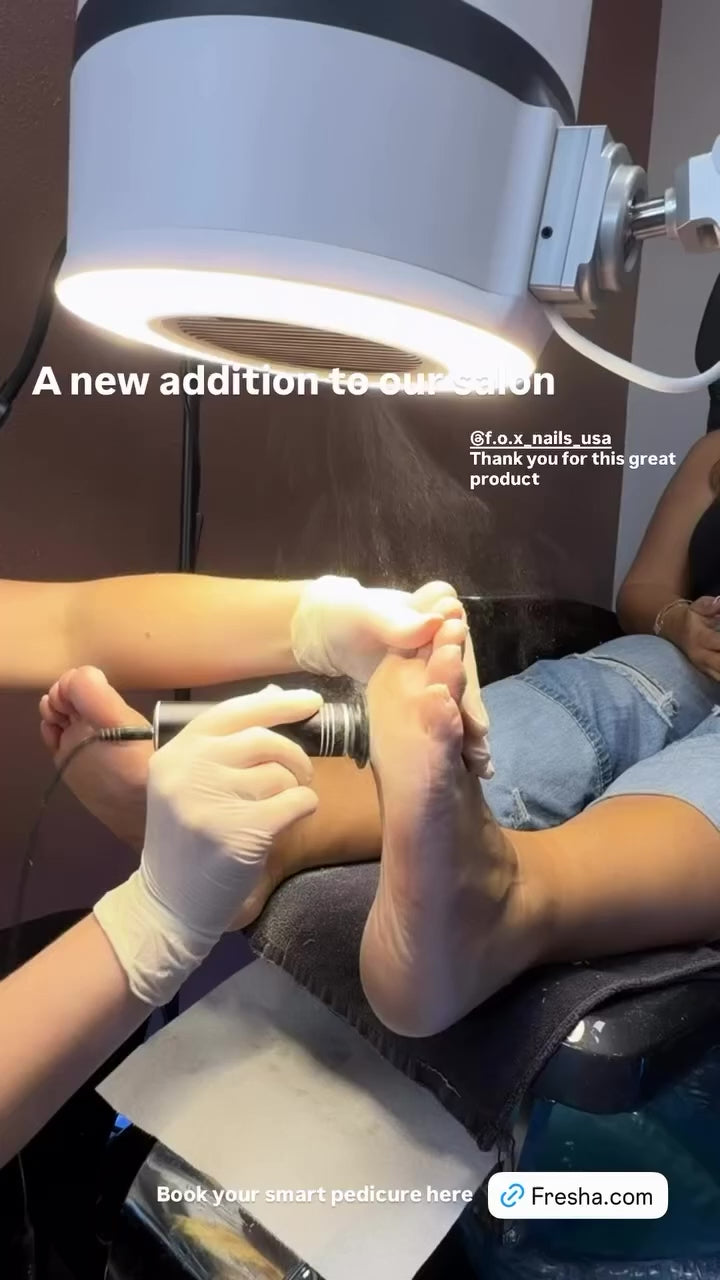

• Modes 4–6: For heavy-duty removal (e.g., pedicures) with maximum power

📌 The unit will remember the last-used speed when powered off.

5. After use:

• Turn off the device using the control panel
• Unplug the unit

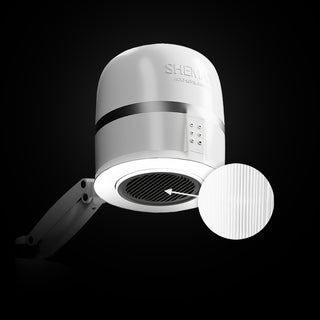

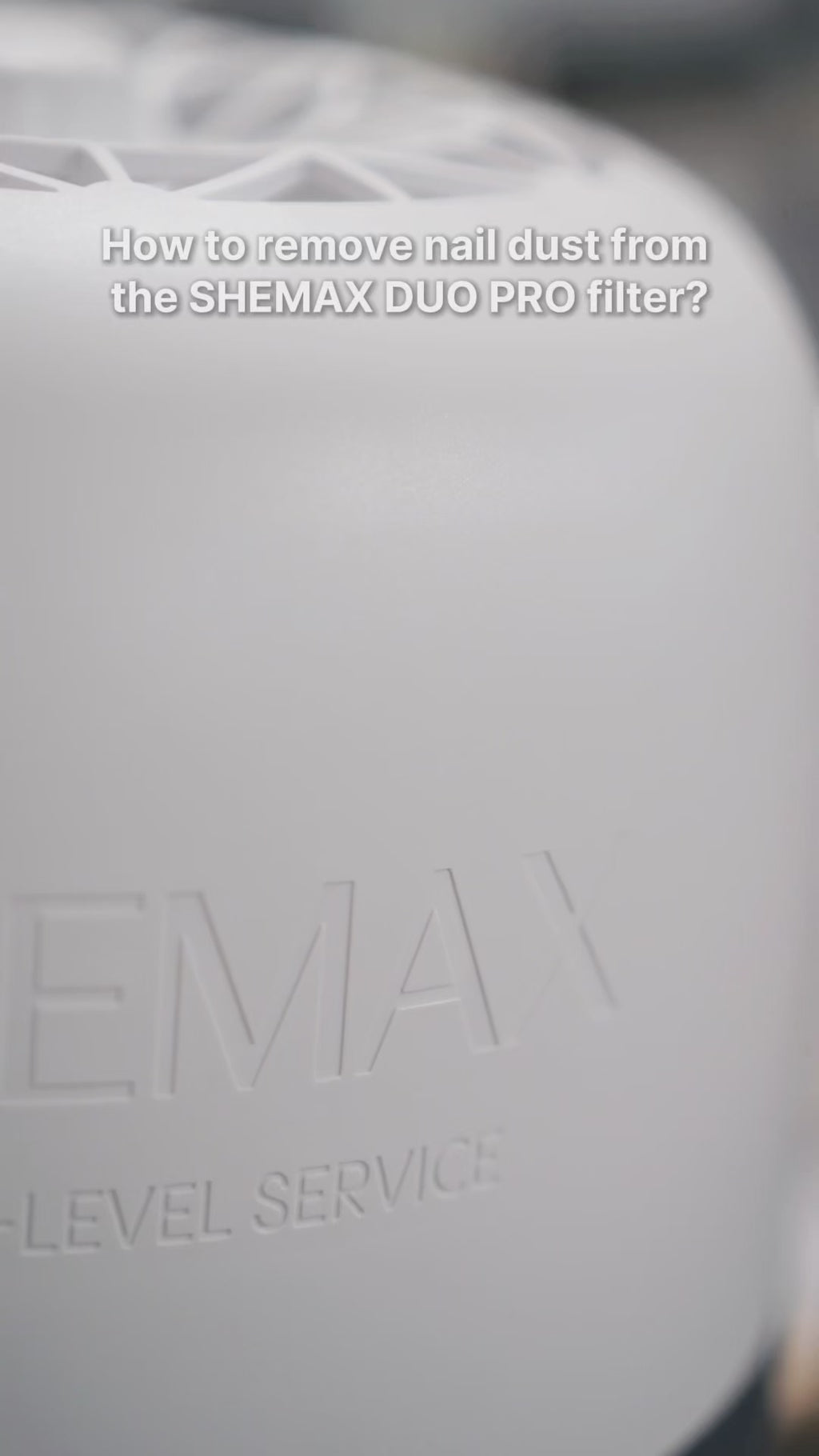

Filter Maintenance

• Rotate the top of the device clockwise to remove the cover. You’ll hear a click when fully loosened.
• Carefully remove the filter.
• Clean with a vacuum or by gently shaking dust into a trash bag using the brush.

✅ We recommend cleaning the filter daily to prevent bacteria buildup and extend product life.
⚠️ Do not wash the filter — dry cleaning only.

Filter Replacement

• The filter can be installed in any direction.
• Replace the filter when suction noticeably decreases (approx. every 3–5 months).

Device Care & Cleaning

• Clean the unit regularly to avoid dust buildup.
• Do not use abrasive or harsh chemical cleaners.
• Do not wipe plastic parts with acetone.
• Follow all filter maintenance instructions.

Warranty

The manufacturer warranty confirms product quality and entitles the customer to warranty service.

Warranty Period: 12 months from the date of purchase.
Keep your receipt, warranty card, and original packaging for the entire warranty period.
Loss of the warranty card voids your coverage.

⚠️ The manufacturer reserves the right to deny warranty service if the following conditions are not met.

Warranty Conditions

The warranty is valid only if the warranty card is correctly filled out with:

• Full product name and model
• Serial number
• Date of purchase
• Warranty period
• Company stamp

Warranty Does Not Cover:

• Damage during unpacking
• Damage caused by foreign objects or liquids entering the unit
• Unauthorized repair attempts
• Damage from natural disasters or war
• Power supply issues outside recommended parameters
• Mishandling or third-party damage
• Serial number tampering, mismatch, or removal
• Broken seals or tamper-evident labels
• Mechanical damage due to improper use, storage, or transportation
• Internal foreign objects not supported by design
• Force majeure events
• Wear and tear from prolonged use
• Power adapter (not covered)
• Incorrect installation

Other Notes:

• Warranty does not cover routine maintenance or technician travel.
• Downtime caused by malfunction is not compensated.
• Damage to other devices due to malfunction of this unit is not covered.
